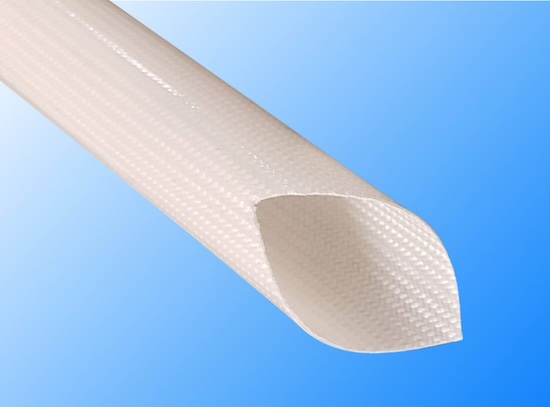

GSE fiberglass sleeve silicone coated

GSE Fiberglass Sleeve

Manufactured according to EN 60684-3-400 to 402 (formerly DIN 40620) with EN 60684-3-401 as standard. Continuous temperature of -60 ° C to + 220 ° C. Dielectric strength 3.3 kV. UV-stable, suitable for tropical climate and RoHS compliant.

ATTENTION!
On request we can offer you all other dimensions between 0.4mm and 50mm.
Standard colour: Natural (colourless) -
In approx. 20 different colours. Colours available e.g. black, reddish brown, yellow, blue, green etc.
The articles listed here are only examples of some dimensions.

Article     Description                                                            Unit
3311       5mm glass braided sleeving with silicone        100m
                natural, class C, 3,3 KV, VE 100m, i. R.
                according to EN 60684-3-401
4368       10mm glass braided sleeving with silicone      100m
                natural, class C, 3,3 KV, VE 50m, i. R.
                according to EN 60684-3-401
4951       20mm glass braided sleeving with silicone      100m
                natural, class C, 3,3 KV, VE 50m as meter pieces
                according to EN 60684-3-401
5141       30mm glass braided sleeving with silicone      100m
                natural, class C, 3,3 KV, VE 50m as meter pieces
                according to EN 60684-3-401
5398       50mm glass braided sleeving with silicone      100m
                natural, class C, 3,3 KV, PU 25m as meter pieces
                according to EN 60684-3-401

Article . Description Unit
3311 5mm glass braided sleeving with silicone
nature, class C, 3,3 KV, VE 100m, in general
acc. to EN 60684-3-401
100m
4368 10mm glass braided sleeving with silicone
nature, class C, 3,3 KV, VE 50m, i.R.
acc. to EN 60684-3-401
100m
4951 20mm glass braided sleeving with silicone
nature, class C, 3,3 KV, VE 50m as meter pieces
acc. to EN 60684-3-401
100m
5141 30mm glass braided sleeving with silicone
nature, class C, 3,3 KV, VE 50m as meter pieces
acc. to EN 60684-3-401
100m
5398 50mm glass braided sleeving with silicone
nature, class C, 3,3 KV, VE 25m as meter pieces
acc. to EN 60684-3-401
100m

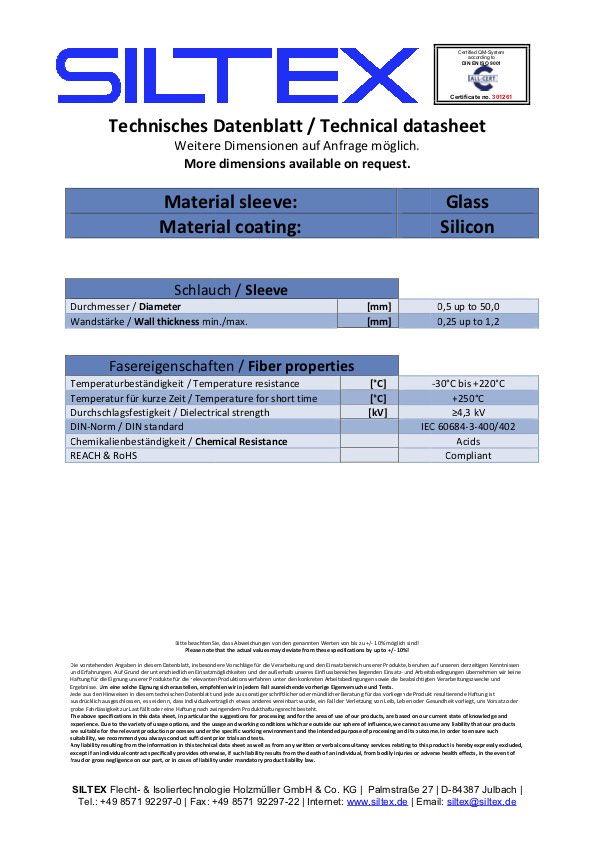

Siltex Datenblatt-Glasseidenschlauch-GSE
