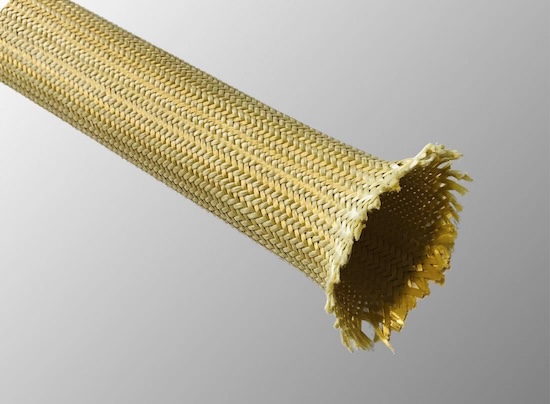

Aramid Sleeve
Aramid braided sleevings are suitable for the production of profiles of any kind as spar or other hollow constructions, whereby it is guaranteed with a suitable application procedure that the force-absorbing reinforcing fibre of the braided sleeving lies air bubble-free, all over and seamless - thus without loss of strength - also around the edge of the shaping core and is sufficiently impregnated with the resin system used. The diameter of the aramid tube can be changed by stretching or compressing, whereby the fiber angle should ideally be between 30° and 60°. A 45° angle is optimal for high torsional or shear strength. A reinforcement in 0° direction can be achieved with so-called UD threads, which are braided in.
ATTENTION!
On request we can offer you all other dimensions between 0.1mm and 500mm.
The articles listed here are only examples of some dimensions.
Article number Diameter/45° Wall thickness Weight KG/100m Weight KG/m²
1589 10 0,25 0,53 0,2
2289 20 0,35 0,79 0,16
2695 30 0,42 1,37 0,17
6717 50 0,57 3,74 0,32
6520 100 0,73 9,55 0,42
| Article number | Diameter/45° | Wall thickness | Weight KG/100m | Weight KG/m² |
|---|---|---|---|---|
| 1589 | 10 | 0,25 | 0,53 | 0,2 |
| 2289 | 20 | 0,35 | 0,79 | 0,16 |
| 2695 | 30 | 0,42 | 1,37 | 0,17 |
| 6717 | 50 | 0,57 | 3,74 | 0,32 |
| 6520 | 100 | 0,73 | 9,55 | 0,42 |
